CSS types.atan() Function

Last Updated : 03 Feb, 2023

The trigonometric atan() CSS function returns the inverse tangent of a value between -∞ and +∞. The single calculation in the function returns the number of radians that correspond to an angle between -90deg and 90deg.

Syntax:

/* numeric values */
transform: rotate(atan(-0.9));
transform: rotate(atan(1));

/* Other values */
transform: rotate(atan(pi / 2));
transform: rotate(atan(e / 4));

Parameter: This function takes the following parameters:

number: This is the numeric value translated from -∞ to +∞.

Return Value: The inverse tan of a number will always return an angle between -90deg and 90deg.

If number is 0⁻, the result is 0⁻.
If number is +∞ the result is 90deg.
If number is -∞ the result is -90deg.

Example 1: Let's take an example to understand how the atan() function works.

HTML

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        div.heading {
          width: 100px;
          height: 30px;
          color: green;
          padding: 30px;
        }
        div.heading-1 {
          transform: rotate(atan(0.1));
        }
        div.heading-2 {
          transform: rotate(atan(0.2));
        }
        div.heading-3 {
          transform: rotate(atan(1));
        }
        div.heading-4 {
          transform: rotate(atan(-0.2));
        }
        div.heading-5 {
          transform: rotate(atan(-0.1));
        }
    </style>
</head>
<body>
    <h1 style="color: green;">GeeksforGeeks</h1>
    <h2>atan() function</h2>
    <div class="heading heading-1">GeeksforGeeks</div>
    <div class="heading heading-2">GeeksforGeeks</div>
    <div class="heading heading-3">GeeksforGeeks</div>
    <div class="heading heading-4">GeeksforGeeks</div>
    <div class="heading heading-5">GeeksforGeeks</div>
</body>
</html>

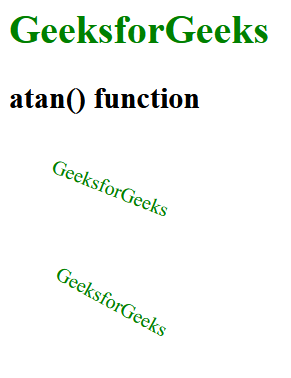

Output:

Example 2: Let's take an example to understand how the atan() function works using pi and e values.

HTML

<!DOCTYPE html>
<html lang="en">
<head>
    <style>
        div.heading {
          width: 100px;
          height: 30px;
          color: green;
          padding: 30px;
        }
        div.heading-1 {
          transform: rotate(atan(pi/8));
        }
        div.heading-2 {
          transform: rotate(atan(e/5));
        }
    </style>
</head>
<body>
    <h1 style="color: green;">GeeksforGeeks</h1>
    <h2>atan() function</h2>
    <div class="heading heading-1">GeeksforGeeks</div>
    <div class="heading heading-2">GeeksforGeeks</div>
</body>
</html>

Output:

Supported browsers: The browsers supported by atan() function are listed below:

Firefox 16.0
Safari
